The Unseen Shield: How Dubai’s Skyscrapers Defy Earthquakes
Introduction: The City of Superlatives and the Silent Threat

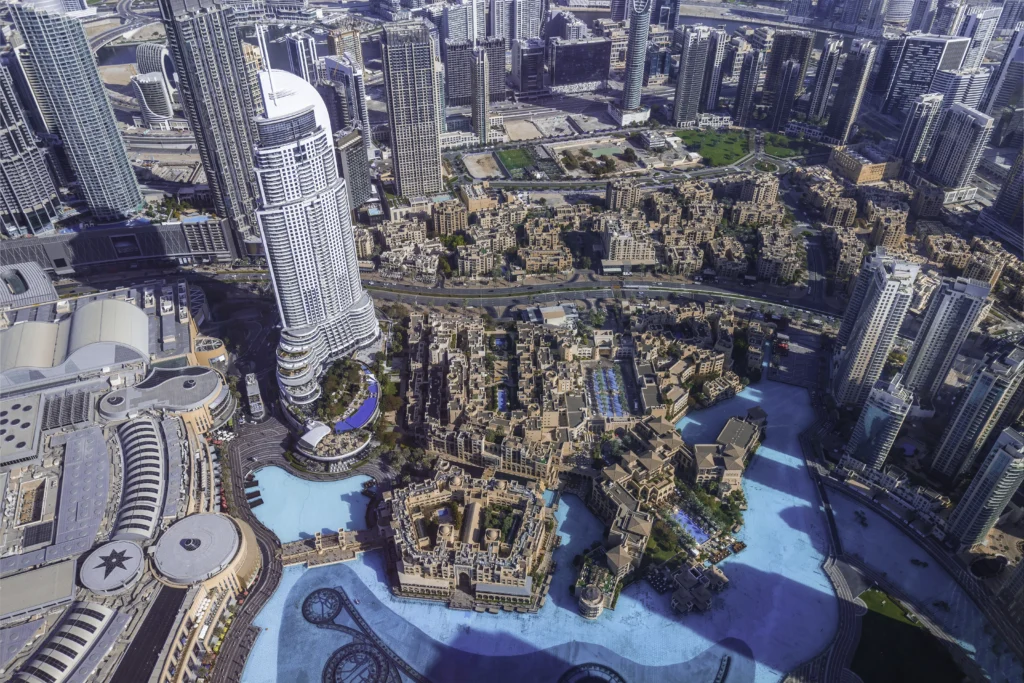

Gazing up at the skyline of Dubai is an exercise in comprehending the impossible. Glass, steel, and concrete pierce the clouds in a dazzling display of architectural ambition. Structures like the Burj Khalifa, the Marina 101, and the Princess Tower don’t just dominate the horizon; they redefine it. They are symbols of a future built today, a testament to human ingenuity and a relentless drive to reach ever greater heights. This glittering metropolis, rising from the desert sands, seems a world away from the violent, tectonic forces that shape our planet.
Yet, the earth is a dynamic entity, and no region is entirely immune to its movements. While Dubai itself does not sit atop a major fault line, it exists within a seismically active neighborhood. Tremors from earthquakes centered hundreds of kilometers away in Iran’s Zagros mountain range have been felt here, a gentle but potent reminder that the ground beneath our feet is not as static as it seems.
This raises a crucial and fascinating question: What secret engineering allows these colossal structures, some weighing over half a million tonnes, to stand with such serene confidence? How can buildings that touch the heavens be prepared for a threat that comes from deep within the earth?
The answer is not a single secret, but a symphony of advanced engineering principles, revolutionary technologies, and uncompromising building standards. It’s a story of designing for flexibility, not just strength; of learning to dance with the earth’s vibrations rather than fighting them. It’s about building an unseen shield of resilience into the very DNA of every skyscraper.
In this deep dive, we will pull back the curtain on the science of seismic-resistant design. Let’s journey from the bedrock deep below the city to the finely-tuned instruments at the pinnacle of its tallest towers and explore the foundational strategies, structural innovations, and sophisticated damping systems that make Dubai’s skyline one of the safest and most resilient in the world.
The Earth Beneath the Emerald City: Understanding Dubai's Seismic Reality
To appreciate the solution, one must first understand the problem. The Arabian Peninsula, upon which Dubai is built, is part of the relatively stable Arabian Tectonic Plate. However, this plate is in a constant, slow-motion collision with the Eurasian Plate to the northeast. This colossal geological confrontation is what has pushed up the Zagros Mountains in Iran, one of the most seismically active regions on the planet. The main Zagros Thrust Fault lies only a few hundred kilometers from Dubai, and a major earthquake there can send powerful seismic waves rippling across the Persian Gulf.
The Ripple Effect: Why Distant Earthquakes Matter
Imagine dropping a large stone into a placid lake. The biggest splash is at the point of impact, but the ripples travel far and wide, retaining significant energy. An earthquake works similarly. The seismic waves it generates, particularly the long-period surface waves, can travel vast distances through the earth’s crust.
While these waves will have attenuated by the time they reach Dubai, they possess a specific characteristic that is of paramount concern to structural engineers: a low frequency of vibration. Taller buildings, by their very nature, also have a low natural frequency. When the frequency of the seismic waves matches the natural frequency of a building, a phenomenon called resonance can occur. Resonance dramatically amplifies the building’s motion, causing it to sway much more violently than it would otherwise. Think of pushing a child on a swing; if you time your pushes to match the swing’s natural rhythm, it goes higher and higher with minimal effort. The same principle applies to buildings and earthquakes, and it is this potential for resonant amplification that engineers in Dubai must design against.
Several times over the past few decades, residents in Dubai’s high-rises have reported feeling the gentle sway of their buildings, corresponding with significant earthquakes in Southern Iran. These events, while causing no damage, serve as real-world tests and validation for the city’s stringent engineering requirements.
Reading the Ground: The Science of Geotechnical Investigation
Before a single blueprint is finalized, an exhaustive investigation of the ground itself is undertaken. This is the field of geotechnical engineering, and it is the bedrock of skyscraper safety. The geological profile of Dubai is unique. It lacks the solid, shallow bedrock found in places like Manhattan. Instead, the ground consists of layers of loose to medium-dense sand, weak sedimentary rocks like sandstone and siltstone, and marine deposits.
This composition presents a dual challenge: it must be strong enough to support the immense weight of a skyscraper, and its behavior during a seismic event must be predictable. To this end, teams of engineers conduct extensive seismic hazard analyses. This involves:
• Boreholes and Soil Sampling: Dozens of deep boreholes are drilled at the proposed construction site. Samples of soil and rock are extracted from various depths and taken to a laboratory for rigorous testing to determine their strength, density, and liquefaction potential (the risk of soil behaving like a liquid during shaking).
• Seismic Tomography: Sophisticated techniques are used to map the subsurface layers and identify any anomalies. By sending seismic waves into the ground and measuring how they travel, engineers can build a detailed 3D model of the earth beneath the site.
• Probabilistic Seismic Hazard Assessment (PSHA): This statistical approach considers all possible earthquake sources that could affect the site, their magnitudes, and their rates of occurrence. The result is a detailed forecast of the level of ground shaking the building might experience over its lifespan, informing the design criteria.
This deep understanding of the ground is not just academic; it dictates the entire foundation strategy. It tells the engineers how deep they must go and what techniques they must use to anchor their super-structures safely to the planet.
Foundations of Fortitude: Anchoring Giants to the Earth
A skyscraper is like a tree. What you see soaring into the sky is only half the story; its survival depends entirely on the strength and depth of its unseen roots. In Dubai, where the ground is not naturally suited for such colossal loads, the foundations are arguably the most critical component of earthquake resistance. The primary strategy employed is the use of deep foundations, specifically piled foundations.
The Power of Friction: Piled Foundations
Since solid bedrock is often hundreds of feet down, simply digging a shallow foundation is not an option. Instead, engineers rely on hundreds of friction piles. These are incredibly long columns of high-strength reinforced concrete that are bored deep into the ground.
Imagine pushing a long wooden pole deep into dense, wet sand. It is held in place not just by the tip resting on a lower layer, but primarily by the immense friction created along the entire surface area of the pole against the sand. This is precisely how friction piles work.
The process is an engineering marvel in itself. A massive auger drills a hole, which is kept open by a constant pressure of drilling fluid or a temporary steel casing. A cylindrical steel cage of reinforcing bars (rebar) is then lowered into the hole. Finally, high-grade concrete is pumped in from the bottom up, displacing the drilling fluid and filling every void. The result is a single, monolithic column of reinforced concrete, locked into the ground by the force of friction.
For a supertall skyscraper, hundreds of these piles are installed, creating a massive underground support network. They effectively transfer the building’s immense vertical load (gravity) and any lateral loads (from wind or earthquakes) into the deeper, more competent soil layers.
Case Study: The Roots of the Burj Khalifa
The foundation of the Burj Khalifa is a masterclass in this principle. Its support system consists of 192 concrete piles, each a staggering 1.5 meters (nearly 5 feet) in diameter. These piles extend more than 50 meters (164 feet) below the ground, equivalent to the height of a 15-story building.
These piles are not just standalone columns. They are connected at the top by a massive, 3.7-meter-thick reinforced concrete slab called a pile cap or raft. This raft, in the shape of the building’s three-winged footprint, acts as a single unit, distributing the tower’s weight evenly across all 192 piles. This enormous, integrated foundation system anchors the world’s tallest building to the earth with incredible tenacity. It creates such a strong bond with the ground that during a seismic event, the building and its foundation move with the earth as one solid entity, preventing the differential movement at the base that could lead to structural failure.
The Art of the Sway: Designing a Skeleton that Bends, Not Breaks
One of the most common misconceptions about earthquake-proof buildings is that they are designed to be perfectly rigid and unmoving. In reality, the opposite is true. Rigidity creates brittleness. An engineer’s goal is not to defy the forces of an earthquake but to intelligently absorb and dissipate its energy. The key concept is ductility—the ability of a material or structure to deform, stretch, and flex without fracturing.
Think of the difference between a glass rod and a steel rod. If you try to bend the glass rod, it will resist until it reaches its breaking point and shatters catastrophically. The steel rod, however, will bend and deform, absorbing the energy of your effort without failing. Skyscrapers are designed to be more like the steel rod. This “designed-in” flexibility allows a skyscraper to sway gently during an earthquake or high winds, converting the kinetic energy of the vibration into harmless motion.
This is achieved through a combination of sophisticated structural systems and advanced materials.
The Buttressed Core: A Modern Fortress
The most significant innovation in the structural design of modern supertalls is the buttressed core. The Burj Khalifa’s Y-shaped, three-winged floor plan is the quintessential example. This is not merely an aesthetic choice; it is a stroke of structural genius.
The building has a strong, hexagonal central core that houses its elevators and mechanical systems. The three wings are set 120 degrees apart around this core. Each wing essentially buttresses the other two. During a seismic or wind event, the lateral forces are channeled down the structure through these wings to the ultra-rigid core. This design provides exceptional resistance to both twisting forces (torsional resistance) and bending forces (lateral resistance). It ensures that the building remains stable and prevents the kind of destructive vibrations that could compromise its integrity.
The Supporting Cast: Shear Walls, Moment Frames, and Outriggers
Surrounding the core is a skeleton of other critical components:
• Shear Walls: These are very large, thick reinforced concrete walls, often forming the building’s central core. They act as the skyscraper’s spine, providing immense stiffness and strength to resist horizontal forces.
• Moment-Resisting Frames: These are the grids of beams and columns that form the building’s perimeter and interior. The connections between beams and columns are meticulously engineered to be ductile. They are designed to bend in a controlled manner at specific points, acting like structural “fuses” that can absorb enormous amounts of energy without failing.
• Outrigger Trusses: At regular intervals up the height of the building (typically on mechanical floors), massive steel trusses connect the central core to the outer perimeter columns. These outrigger trusses act like the outstretched arms of a person trying to maintain balance. They dramatically increase the building’s stiffness and resistance to overturning forces by effectively widening its structural footprint.
The Materials of a Modern Giant
The ductility and strength of these systems would be impossible without advanced materials:
• High-Performance Concrete: The concrete used in Dubai’s skyscrapers is a far cry from the standard mixture. It is a highly engineered cocktail with specific admixtures that give it incredibly high compressive strength and durability. For the Burj Khalifa, a special mix was required that could be pumped to unprecedented heights and withstand the immense pressures at the base of the structure.
• Reinforced Steel (Rebar): Steel and concrete are perfect partners. Concrete is immensely strong in compression (squeezing forces), while steel is incredibly strong in tension (pulling forces). During an earthquake, different parts of the structure are simultaneously pushed and pulled. The steel rebar embedded within the concrete handles these tensile forces, giving the structure its crucial ductility. The grade and placement of every single piece of rebar are precisely calculated to ensure the building behaves as predicted under stress.
The Pendulum and the Damper: A Skyscraper's Inner Balancing Act
While a ductile structure can safely sway, excessive motion can be unsettling for occupants and can cause non-structural damage (to partitions, ceilings, and facades). To control this sway and actively counteract the forces of an earthquake, engineers employ sophisticated damping systems. These are devices designed to absorb vibrational energy and dissipate it, effectively calming the building’s motion.
The Star of the Show: The Tuned Mass Damper (TMD)
The most impressive of these is the Tuned Mass Damper (TMD). A TMD is, in essence, a giant pendulum or a massive block of steel, weighing hundreds of tons, mounted near the top of a skyscraper. It is connected to the structure via springs and hydraulic cylinders (viscous dampers).
The “tuning” is the critical part. The TMD is engineered so that its own natural frequency of oscillation is precisely matched to the natural frequency of the building. Here’s how it works:
- An earthquake or strong wind pushes the building, causing it to start swaying in one direction.
- As the building moves, the massive weight of the TMD, due to its inertia, initially lags behind.
- The springs and hydraulic systems then pull the mass, causing it to swing. Because it is “tuned,” it swings in the opposite direction to the building’s sway.
- This counter-movement creates an opposing force that pushes back against the building.
This action effectively cancels out a significant portion of the building’s motion. It’s like having a perfectly synchronized partner inside the building, always pushing back against the external forces. The most famous example is the 728-ton golden pendulum in the Taipei 101 tower, which is a major tourist attraction. While Dubai’s towers don’t always put their dampers on public display, the same technology is at work, providing an invisible shield against vibrations.
The Unsung Heroes: Viscous and Viscoelastic Dampers
Less dramatic but equally important are smaller damping devices installed throughout the building’s frame.
• Viscous Dampers: These operate on the same principle as the shock absorbers in your car. They consist of a piston inside a cylinder filled with a thick, silicone-based fluid. As the building sways, it forces the piston to move through the fluid. This movement generates friction and heat, converting the kinetic energy of the motion into thermal energy, which is then safely dissipated. Hundreds of these dampers can be installed within a building’s bracing system.
• Viscoelastic Dampers: These are simpler devices made of layers of a rubber-like polymer bonded between steel plates. When the building moves, these polymer layers are stretched and sheared. This deformation process absorbs energy and converts it into a small amount of heat, reducing the amplitude of vibrations.
Together, these active and passive damping systems act as a sophisticated immune response, seeking out and neutralizing the harmful energy of seismic vibrations before they can accumulate and cause damage.
Building by the Book: Dubai's Uncompromising Safety Standards
All this incredible technology would be meaningless without a regulatory framework that enforces its correct implementation. Dubai’s commitment to safety is institutionalized through the Dubai Municipality, which enforces one of the most rigorous and modern building codes in the world.
This is not a static document. The Dubai Building Code is a living set of regulations that is constantly updated to incorporate the latest findings from global seismic research, materials science, and engineering best practices. It heavily references and often exceeds the standards set by international bodies like the International Code Council (ICC) and the American Society of Civil Engineers (ASCE).
From Prescription to Performance
A key evolution in modern building codes is the shift towards Performance-Based Design (PBD). The traditional, prescriptive approach was like a recipe: “Use columns of this size and beams of this thickness.” Performance-based design, on the other hand, is about defining the outcome.
For a supertall skyscraper, the performance objectives might be:
1 Service Level: The building must be fully operational and suffer no damage from a minor, frequent earthquake.
2 Life Safety: In a rare, more powerful earthquake, the building must maintain its structural integrity, allowing all occupants to evacuate safely. Some non-structural damage is acceptable.
3 Collapse Prevention: In the extremely rare, “maximum credible earthquake,” the building must not collapse, even if it sustains significant structural damage.
Engineers are then free to use any combination of innovative materials and systems to prove, through advanced analysis, that their design meets these life-or-death performance targets.
The Virtual Proving Ground: Simulation and Testing
Before any ground is broken, every supertall skyscraper in Dubai is built, shaken, and tested thousands of times in a virtual environment. Engineers use powerful Finite Element Analysis (FEA) software to create a highly detailed digital twin of the building. They then subject this virtual model to a battery of simulated earthquakes, using real-world ground motion data from past events around the globe. This analysis reveals precisely how every beam, column, and joint will react under extreme stress, allowing engineers to optimize the design for maximum safety and efficiency.
Furthermore, physical scale models of the towers are constructed and placed in wind tunnels. While this is primarily to study the effects of wind, the data gathered on how the building behaves under aerodynamic loads provides invaluable information that also informs the seismic design, particularly the requirements for the damping systems. This exhaustive, multi-faceted testing process ensures that by the time construction begins, the building’s performance is a known and trusted quantity.
A Skyline of Assurance: Dubai's Resilient Future
The breathtaking skyline of Dubai is more than just a collection of tall buildings. It is a symbol of what is possible when human ambition is paired with brilliant engineering. The silent, invisible systems at work within these towers—the deep foundations, the ductile skeletons, the advanced dampers, and the strict codes that govern them—form a powerful shield of assurance.
The gentle sway of a skyscraper during a distant tremor is not a sign of weakness; it is the hallmark of an intelligent and sophisticated design at work. It is a structure performing exactly as intended, gracefully dissipating immense energy and protecting the lives within. As Dubai continues to build its incredible vision of the future, residents and visitors can look up at its iconic towers with confidence, knowing they are monuments not only to height, but to an unwavering commitment to safety.
